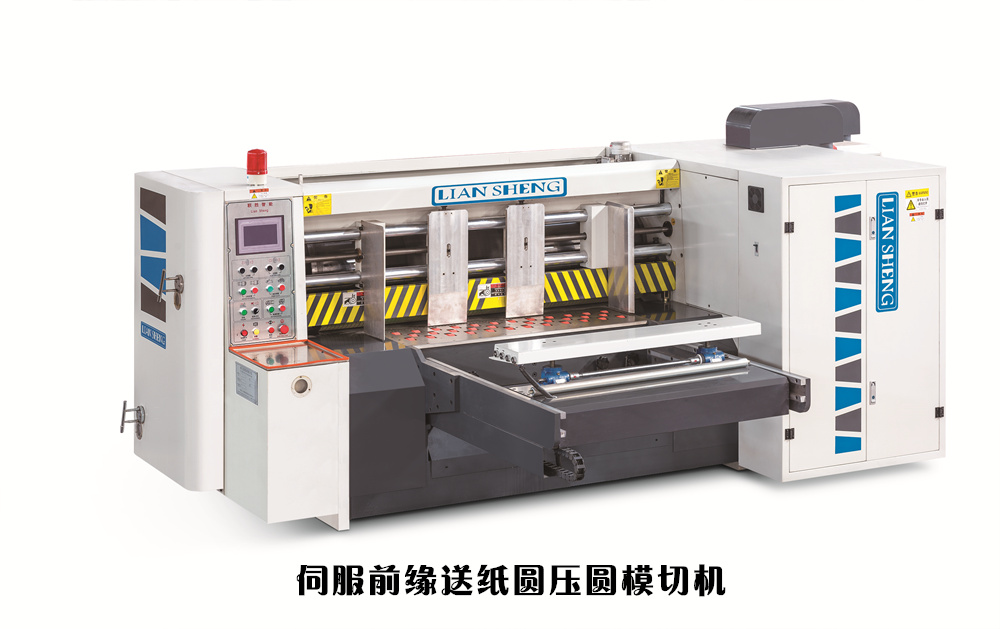

| 伺服前沿送纸圆压圆模切机 | |||||
| Servo Lead Edge Feeding Rotary Die Cutting Machine | |||||
| 送纸采用德国力士乐伺服系统驱动送纸轮，送纸准确可靠，单独伺服控制有效避免了精度的丢失，独立伺服电机控制减少了传动环节，使用寿命长； | Feeding Unit Driven by German Bosch-Recroth Servo System, reliable and accurate, independent servo control avoids the reducing of the accuracy and independent servo motor driven need less transmision components gives the machine longer serving life. | ||||
| 采用真空吸附辅助送风系统，风压可调; | Auxiliary vacuum feeding unit, vacuum adjustable; | ||||
| 配有柔性进纸机构及隔张送纸功能; | Flexible feeding system and skip feeding function. | ||||
| 整机齿轮高频热处理，表面加硬精磨制成；采用喷淋式自动润滑， 极大提高了运转精度及使用寿命 | The gears are high frequency heat treated, surface hardening and fine grinding, equipped with automatic spray lubricating system, greatly improves the running condition and service life. | ||||
| 左右档板位置有电脑控制调整，快速准确。 | Both port and starboard guiding plate can be adjusted by computer, fast and accurate; | ||||
| 辊筒采用优质钢，内部调质，表 面研磨镀硬铬并做平衡处理， 增加运转平稳 | Rollers made of high quality steel, quenched and surface tempered,chromed and fine grinded, balanced to improve its running stability; | ||||
| 采用进口模切胶垫，安装调换快速方便，模切刀口平滑， 使用寿命长，极大降低使用成本 | Imported Anvil cover, easy installation and replacement;clean cut and long life for the die blades. | ||||
| 模切辊采用液压装置 横向移动，距离为 40mm 并有气动装置控 制板辊上下升降，延长胶垫使用寿命 | Axial movement of the Anvil roller driven by hydraulic system with a distance of 40mm, smooth and stable.Pneumatic cylinders controls the lifting and lowering of the Die Roller, disengage the rollers while not feeding. | ||||
| 主要技术参数 | Parameters | ||||
| 规格型号 | Model | MR216A | MR220A | MR225A | MR228A |
| 最高速度 | Max. Speed(Pcs/Min.) | 160 | 160 | 140 | 140 |
| 经济速度 | Min. Speed(Pcs/Min.) | 80-100 | 80-100 | 80-100 | 80-100 |
| 最大模切尺寸 | Max. Feeding Size(mm) | 1380*1600 | 1380*2000 | 1380*2400 | 1380*2800 |
| 最小模切尺寸 | Min. Feeding Size(mm) | 400*600 | 400*600 | 400*600 | 400*600 |
| 适应纸板厚度 | Suitable Thickness(mm) | 2-11 | 2-11 | 2-11 | 2-11 |
| 模切精度 | Precision(mm) | ±1 | ±1 | ±1 | ±1 |
| 电机总功率 | Main Power(KW) | 5.5 | 7.5 | 7.5 | 11 |
| 另有型号 | |||||
| MR116A | MR120A | MR125A | MR128A | ||
| MR316A | MR320A | MR325A | MR328A | ||
| MR416A | MR420A | MR425A | MR428A | ||
