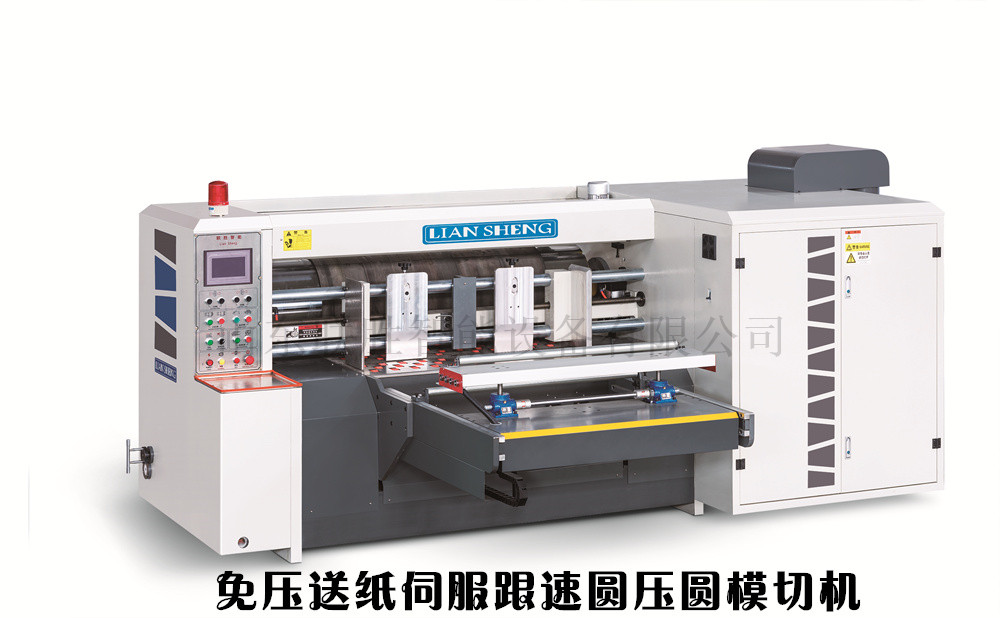

| 免压送纸伺服跟速圆压圆模切机 | ||||
| Non—pressure Feeding Speed Compensation Rotary Die Cutting Mahcine | ||||
|
优力胶垫（砧垫）辊采用德国伺服控制，智能调整胶垫辊的速差，保证模切纸箱产品尺寸的一致性，通过伺服电机的智能调整，不仅能解决胶垫磨损后的尺寸变化，还可以一定程度的解决刀版制作的误差，实现纸箱尺寸的一致性。 |
Upper Anvil driven by servo system, automatically adjust the speed of the roller, to guarantee the cardboard of the same size; Capable of compensating the speed difference from the wear of the pad and rectify the errors during making the die. | |||
|
独特设计解决模切过程中纸箱抗压强度降低问题，有效提高抗压强度； |
Unique design to solve the problem of cartons strength reducing in the process of feeding, effectively improves the strength of the product; | |||
| 配全球先进、稳定、精确的德国力士乐伺服控 制系统； | Adopts the advanced, stable and accurate Bosch-Rexroth Servo Control System | |||
| 前后双风室送纸变频调压确保送纸更精确； | Forward and Aft vacuum chambers, vacuum adjustable by applying Frequency converter, guarantees the precision of feeding; | |||
| 先进的液压控制轴向移动系统确保移动平稳准确 | Axial movement of the upper roller driven by hydraulic system, smooth and stable. | |||
| 自动磨削系统确保模切胶垫平整光滑 | Automatic repaire unit for the rubber pad,repaires the rubber surface, keep it smooth. | |||
| 自动喷淋润滑系统使传动系统寿命更长久 | Automatic spray lubricating system, improves the working condition of the whole transmiting system. | |||
| 传动齿轮采用 20CrMnTi 渗碳处理，德国大型磨齿机精磨而成 | Transmission gears are made of 20CrMnTi with carburizing treatment and manufactured by Germen Processing Center. | |||
| 人机界面使设备调整简单快捷 | Touch screen HMI, easy and convenient adjustment. | |||
|
进口模切胶垫使用寿命长 |
Inmported Die Cutting Rubber Pad, longer serving life. | |||
| 主要技术参数 | Parameters | |||
| 规格型号 | Model | MRF216 | MRF220 | MRF225 |
| 最高速度 | Max. Speed(Pcs/Min.) | 180 | 180 | 180 |
| 经济速度 | Min. Speed(Pcs/Min.) | 120-160 | 120-160 | 120-160 |
| 最大模切尺寸 | Max. Feeding Size(mm) | 1380*1600 | 1380*2000 | 1380*2400 |
| 最小模切尺寸 | Min. Feeding Size(mm) | 400*600 | 400*600 | 400*600 |
| 适应纸板厚度 | Suitable Thickness(mm) | 2-11 | 2-11 | 2-11 |
| 模切精度 | Precision(mm) | ±1 | ±1 | ±1 |
| 电机总功率 | Main Power(KW) | 7.5 | 7.5 | 11 |
| 另有型号 | ||||
| MRF116 | MRF120 | MRF125 | ||
| MRF316 | MRF320 | MRF325 | ||
| MRF416 | MRF420 | MRF425 | ||
